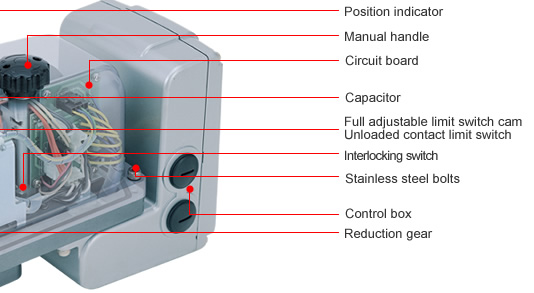

Actuator size
|
Type 2
|
Type 3
|
Type 4
|
|
|
Specification / Model
|
EXCN100-2
|
EXCN200-2
|
EXCN100-3
|
EXCN200-3
|
EXCN100-4
|
EXCN200-4
|
|
|
Power supply
(single-phase, 50/60 Hz, AC)
|
100V±10%
|
200V±10%
|
100V±10%
|
200V±10%
|
100V±10%
|
200V±10%
|
|
|
Rated current*1 (A)
|
0.65
|
0.35
|
1.2
|
0.6
|
12.8
|
1.5
|
|
|
Quarter-turn (90°) opening / closing time*2
|
50Hz (sec)
|
About 25
|
About 35
|
About 49
|
|
|
60Hz (sec)
|
About 21
|
About 30
|
About 41
|
|
|
Rated output torque (Nm)
|
49
|
196
|
588
|
|
|
Motor output (W)
|
16
|
31
|
85
|
|
|
Motor power consumption (W)
|
65
|
120
|
280
|
270
|
|
|
Motor protection
|
Built-in thermal protector (120°C open)
|
|
|
Duty factor
|
30% ED or lower (at a room temperature of 20°C)
|
|
|
Position detecting limit SW*3
|
2 Switches, each for open / closing positions (no-voltage contact SWs for stop and signals at fully open
and fully closed ends). Contact capacity: 30 VDC, 3 A
|
|
|
Actuation
|
Reverse (default) / Forward actuation selectable
|
|
|

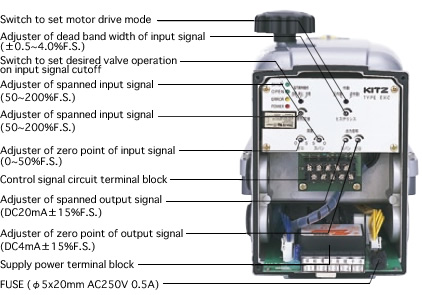

Input signals
|
20 mADC (standard) /0-5 VDC, 1-5 VDC /0-10 VDC /2-10 VDC /0-135Ω
|
|
|
Input impedance
|
Current control: 240Ω Voltage / Resistance control: 10Ω
|
|
|
Valve travel input signals
|
4-20 mADC (Permissible load: 300Ω and belowj
|
|
|
Action at input signal off
|
Selectable from Valve Fully Open / Valve Fully Closed/Stop (default)
|
|
|
Action output at input signal off
|
Alarm signal output (Resistance load: 30 VDC, 3A)
|
|
|
Motor linearity
|
}1.0% F.S. (No load, at the motor output shaft)
|
|
|
Dead zone
|
Adjustable (}0.5 to 4.0% F.S.)
|
|
|
Adjustment functions
(at input of 4-20 mADC)
|
Zero point adjustment range: -15% to +50% F.S.ESpan length adjustment range: +50% to +200% F.S.
|
|
|
Operating environment
|
Indoors and outdoors (Not submersible in water or exposable to direct sunshine)
|
|
|
Waterproofing / Explosion-proofing
|
Compliant with IP67
|
|
|
Space heater capacity (W)
|
10
|
15
|
10
|
15
|
20
|
|
|
Space heater consumption power (W)
|
2.5
|
2.9
|
2.5
|
2.9
|
4
|
|
|
Ambient temperature (°C)
|
|10`{50
|
|
|
Insulation class
|
JIS C 4003 Class E
|
|
|
Insulation withstand voltage
|
1 min. at 1500 VAC or 1 sec at 1800 VAC
|
|
|
Insulation resistance
|
100 MΩ or higher when measured with a 500-VDC megger
|
|
|
Mounting attitude
|
From upright to horizontal (cannot be mounted upside down)
|
|
|
Lubricant
|
Grease
|
|
|
Conduit connection
|
G1/2 x 2 end connections
|
|
|
Wire connection
|
Supply power terminal block: M4 screw for connection x 5 pcs. Control signal terminal block:
M3 screw for connection x 10 pcs.
|
|
|
Stopper
|
Open end: Fixed mechanical stopper
Closed end: Fixed mechanical stopper + Adjusting stopper (Standard specification)
|
|
|
Manual operation
|
Pull up and turn the round handle provided on the top of the cover. The built-in interlock switch cuts
off the power supplyto the motor and space heater during manual operation.
|
|
|
Power return
|
Push the handle down.
|
|
|
Connection flange
|
Conforming to ISO5211
|
|
|
Coating colors
|
Cover: Metallic silver. Case: Metallic dark gray. Handle: Matte black.
|
|
|
Weight*4ikgj
|
About 6.0
|
About 8.8
|
About 14.7
|
|
